Uncompromising performance. Unflinching accuracy. Unwavering reliability. Harnessing the myriad technical advantages of electrostatic principles to recreate sound in its truest form—this is what MartinLogan is all about.
MartinLogan makes some of the worlds finest loudspeakers. They pioneered the curved electrostatic driver to get around the problem that other electrostatics have of no dispersion. and they married this CLS driver to dynamic woofers to get full range speakers with the claruty of an electrostat witht he bass and dynamics of a dynamic speaker. Over the years their line has expanded to now include subwoofers and a very high quality line of dynamic speakers that use their Folded Motion® XT tweeter. The subwoofers are excellent and designed to sound great in music systems but they are also very good for multi-channel systems.
Electrostatic speakers are the MartinLogan Legacy
Curvilinear Line Source (CLS) Electrostatic Panel
All Martin Logan electrostatic speakers incorporate their unique CLS technology. Through our proprietary manufacturing method, they have built-in the panel’s gentle horizontal curvature. This unique design enhances the high frequency detail produced by the large radiating surface, without compromising overall sound quality. Notice how the gentle modern curve and perforation pattern gives way to the flat grille of the woofer section.
Controlled Dispersion Sound Radiation
The sound we hear from a loudspeaker is a combination of direct radiation from it to our ears, and reflections off of room surfaces—walls, floor, and ceiling. How our brains integrate this information is far from simple. Depending on the angle of incidence to the ears and the arrival-time difference between direct and reflected sound, reflections can either blur detail and stereo imaging, or enhance the natural impression of depth and openness.
Electrostatic panels, which are true dipole speakers, produce a nearly-ideal controlled dispersion radiation pattern. They send very little sound to the sides, thereby minimizing side-wall reflections, whose short arrival times tend to interfere with the perception of the direct sound. Their strong rear radiation, however, produces a generous amount of natural, ambience-enriching later-arriving mid- and upper register information.
Amazing performance for the money
$2799.98 Pair

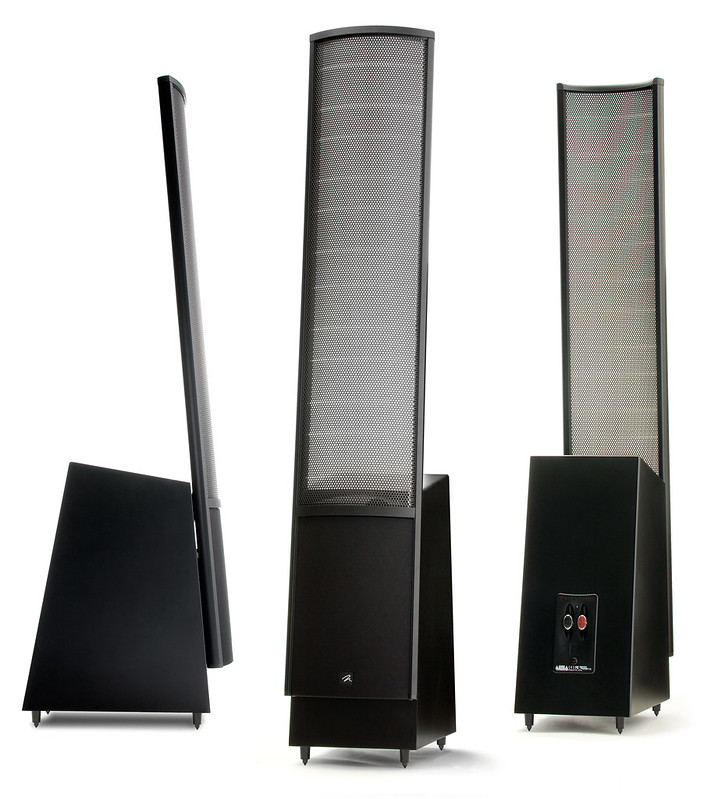

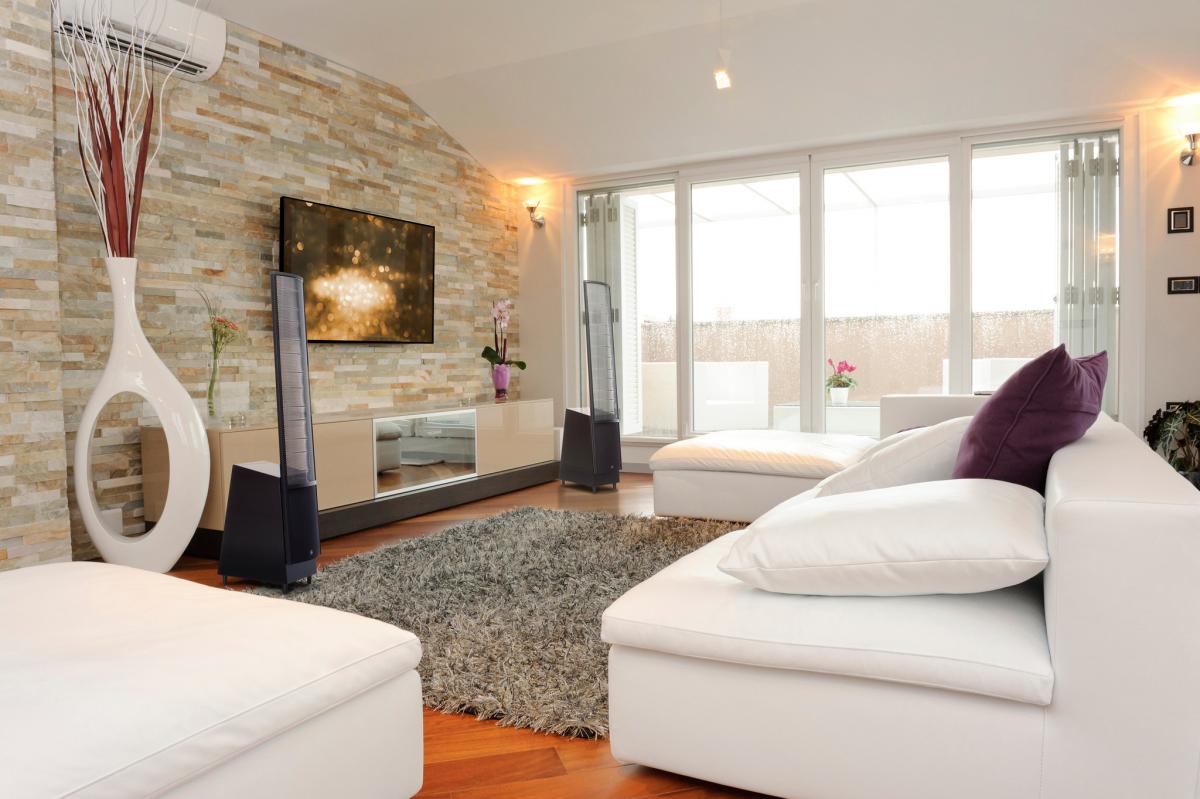

The ElectroMotion ESL represents a bold new direction for electrostatic loudspeaker design. We were shocked at the perfrmace of this speaker. Real high end performance at a price that everyone can afford and at 91dB efficiency it can be driven by affordable electronics. The EM-ESL features a full-sized 34-inch tall curvilinear XStat™ electrostatic transducer and a superbly integrated high-performance woofer, the new EM-ESL performs more like a mini-flagship than an entry level audiophile speaker. Designed for both 2-channel music enthusiasts and those seeking the worlds most articulate and dynamic multi-channel home theater systems, the EM-ESL is the most compelling 'affordable' audiophile-grade speaker ever brought to market.
We have complete systems starting at $3,999.00 delivered with 150wpc integrated amp, DAC, speakers, and cables
Full info is at: https://www.martinlogan.com/en/product/electromotion-esl
| Frequency Response | 42–22,000 Hz ±3dB |
| Recommended Amp Power | 20—300 watts per channel |
| Horizontal Dispersion | 30° |
| Vertical Dispersion | 34" (71cm) line source |
| Sensitivity | 91 dB/2.83 volts/meter |
| Impedance | 6 Ohms, 1.6 @ 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers. |
| Crossover Frequency | 500Hz |
| High Frequency Transducer | XStat™ CLS™ electrostaic transducer » Panel Dimensions: 34" x 8.6" (86 x 22cm) » Radiating Area: 292 in² (1,892 cm² ) |
| Low Frequency Transducer | 8" (20.3cm) high excursion, high-rigidity paper cone with extended throw drive assembly, non-resonance asymmetrical chamber format; bass reflex |
| Components | Custom-wound audio transformer, air core coils, large steel laminate inductors, polyester capacitors, and low DF electrolytic capacitors |
| Inputs | Push style with banana jacks |
| Weight | 35.5 lbs. (16.1 kg) |
| Dimensions | 52.1" x 9" x 16.3 " |

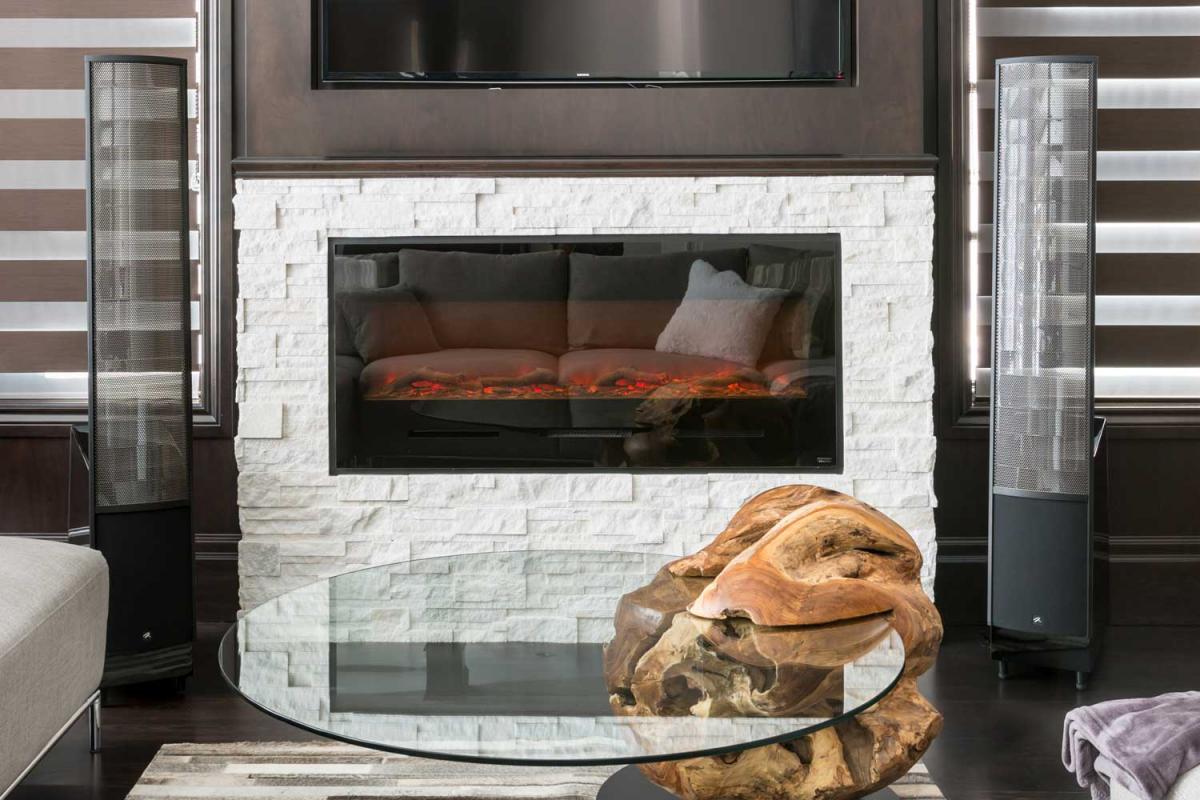

Our favorite for best value in the line
$4,498.00 pair
Our favorite as the best value in the electrostatic line. The larger more expensive models are better but if you are looking for the best bang for the buck the ElectroMotion ESL X is it.

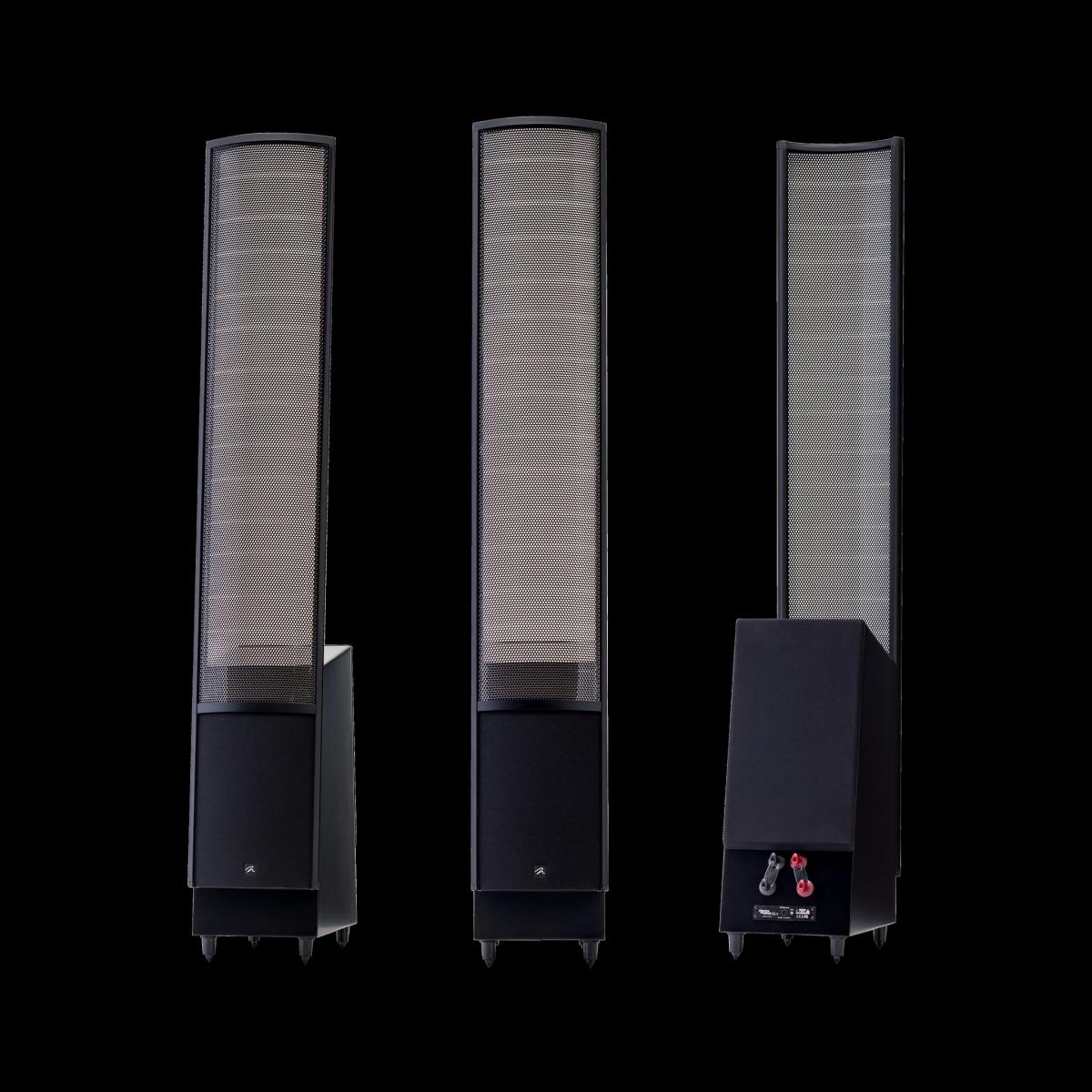

The ElectroMotion ESL X features a new larger XStat™ electrostatic transducer, with a radiating area over 50 square inches larger than the EM-ESL model. The two 8-inch high-excursion woofers are housed in a non-resonant asymmetrical bass reflex (ported) chamber, in a surprisingly compact enclosure. The woofers have custom engineered high-rigidity paper cones, with extended-throw driver assemblies.
Component elements within the EM-ESL X replicate the design and performance of components used on many of MartinLogan’s more expensive loudspeakers, such as custom-wound transformers, air-core coils, large steel laminate inductors, polyester and low DF electrolytic capacitors. Custom 5-way bi-wire binding posts allow for secure wire connections. System Frequency Response is 41–22,000 Hz ±3db. Recommended amplifier power is 20–400 watts per channel. Impedance is rated at 6 ohms (1.6 ohms at 20 kHz); the EM-ESL X is compatible with 4, 6, or 8 ohm rated amplifiers. These babies sing with a reasonably priced integrated amp.
We have complete systems from $6499.00 delivered including a 300wpc integrated amp with DAC, balanced power conditioner and cables.
Just run your computer, streamer or turntable into this system for audio Nirvana!
| Frequency Response | 41–22,000 Hz ±3dB |
| Recommended Amp Power | 20—400 watts per channel |
| Horizontal Dispersion | 30° |
| Vertical Dispersion | 40" (101.6cm) line source |
| Sensitivity | 91 dB/2.83 volts/meter |
| Impedance | 6 Ohms, 1.6 @ 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers. |
| Crossover Frequency | 400Hz |
| High Frequency Transducer | XStat™ CLS™ electrostaic transducer » Panel Dimensions: 40" x 8.6" (102 x 22cm) » Radiating Area: 344 in² (2,244 cm² ) |
| Low Frequency Transducer | Two 8” (20.3 cm) high excursion, high-rigidity paper cones with extended throw driver assembly, non-resonance asymmetrical chamber format, bass reflex. |
| Components | Custom-wound audio transformer, air core coils, large steel laminate inductors, polyester capacitors, and low DF electrolytic capacitors |
| Inputs | Custom 5-way bi-wire tool-less binding posts |
| Weight | 52 lbs. |
| Dimensions | 59.2" x 9.4" x 20.7 " |

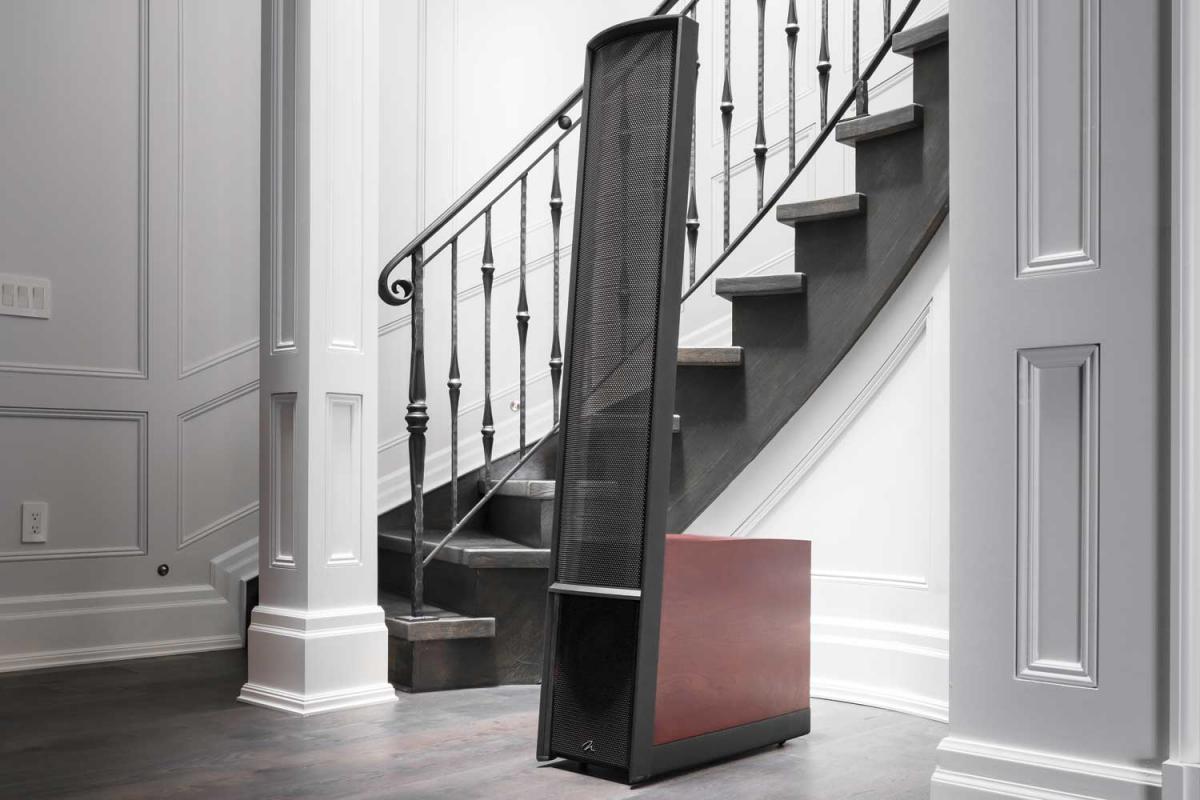

Classic ESL 9
Amazing performance
$7,499.98 pair
This completely passive design features a 9.2-inch (CLS™) XStat™ electrostatic transducer, dual 8-inch aluminum-Cone woofers, and custom 5-way bi-wire tool-less binding posts. With an almost 20% larger CLS panel compared to the ESL X, better vertical dispersion, dual upgraded metal woofers and higher end parts all around they are the ultimate expression of an affordable state of the art speaker.
| Frequency Response | 34–23,000 Hz ±3dB |
| Recommended Amp Power | 20—400 watts per channel |
| Horizontal Dispersion | 30° |
| Vertical Dispersion | 44" (112cm) line source |
| Sensitivity | 90 dB/2.83 volts/meter |
| Impedance | 4 Ohms, 0.8 at 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers. |
| Crossover Frequency | 380Hz |
| High Frequency Transducer | XStat™ CLS™ electrostatic transducer » Panel Dimensions: 44" x 9.2" (112 x 23cm) » Radiating Area: 405 in² (2,576 cm² ) |
| Low Frequency Transducer | Two 8” (20.3 cm) cast basket, high excursion, rigid aluminium cone woofers with extended throw drive assembly, non-resonance asymmetrical chamber format |
| Components | Custom-wound audio transformer, air core coils, low DCR steel laminate coils, polyester capacitors |
| Signal Inputs | Custom 5-way bi-wire tool-less binding posts |
| Power Draw | Max: 2W per channel Standby: <1W per channel |
| Weight | 78 lbs. (35.4 kg) |
| Dimensions | 59.8" x 10.4" x 25.4 " |

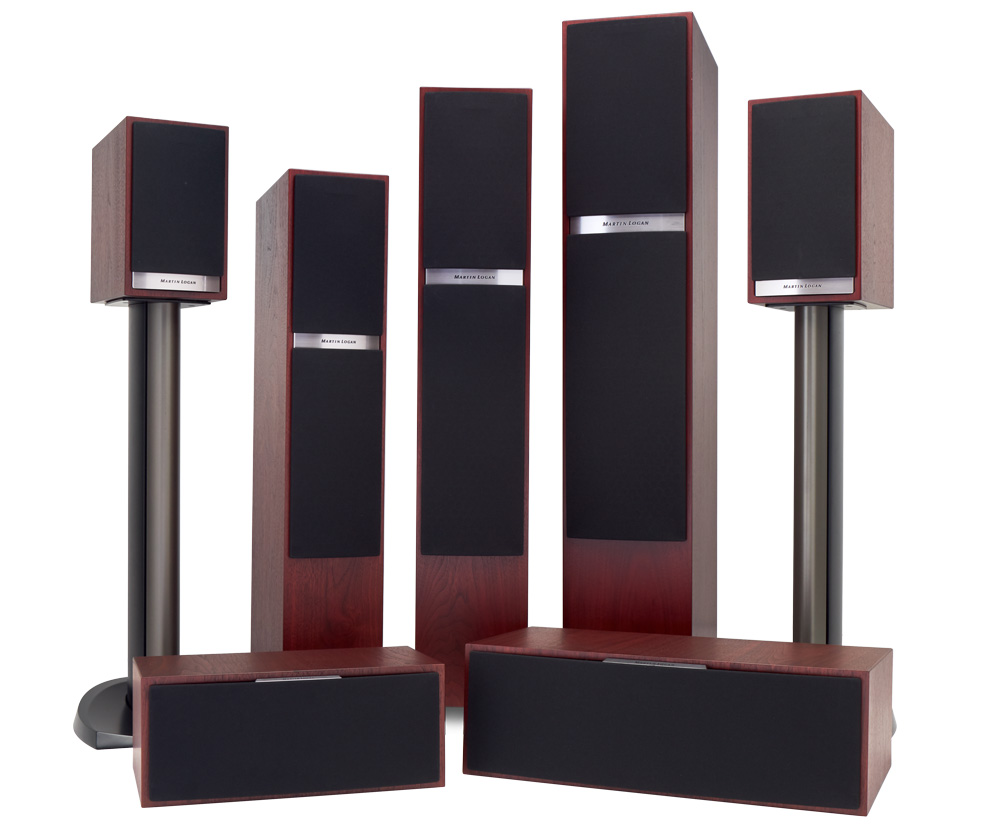

The Motion Series is inspired by the performance of their ultra-high-end electrostatic loudspeakers and is perfect for music or home cinema lovers. They offer full range floor-standing speakers, and gutsy compact bookshelf models, with timbre-matched centers, all featuring MartinLogan’s cutting edge Folded Motion tweeter and backed by exceptional components and hand-built crossovers. They reveal a richly detailed audio experience at unrivalled prices.
The success of the Motion Series is directly attributed to its close relation to MartinLogan’s legendary ultra-high-end electrostatic loudspeakers. The desire to transmute that level of performance into a more traditional loudspeaker at a more affordable price drove the initial design imperatives that created the Motion Series.

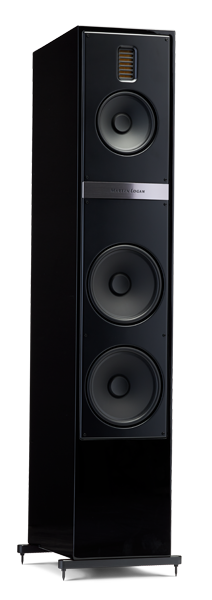

Motion 60XTi
$1874.99 each
This is the flagship of the Motion Series. It's a powerful floorstanding loudspeaker featuring a Folded Motion® XT tweeter, 6.5-inch aluminum cone midrange driver, dual 8-inch aluminum cone woofers with rear-firing bass ports, and a proprietary Vojtko crossover network. XT stands for extreme: lifelike details from the lightning-fast Folded Motion XT tweeter, open and authentic midrange performance, coupled with deep, musical bass response. These classic performance technologies have been enhanced by the slightest of modifications, including the drive-stabilizing dust cap design, stiffened motor suspension, and low-mounted woofers to reduce an acoustically harmful phenomenon known as floor bounce. The speaker's enclosure sports increased internal bracing, a reinforced baffle, and a fabric grille. Available in three stylish finishes: gloss black, matte white, and red walnut.
Frequency Response: 35–25,000 Hz ±3dB
Recommended Amplifier Power: 20—400 watts per channel
Horizontal Dispersion: 80°
Vertical Dispersion: 30°
Sensitivity: 94 dB/2.83 volts/meter
Impedance: 4 Ohms Compatible with 4, 6, or 8 Ohm rated amps
Crossover Frequency: 400 & 2,200 Hz
High Frequency Transducer: 1.25" × 2.4" (3.2cm × 6.1cm) Folded Motion XT Transducer with 4.5" x 2.75" (11.4cm × 7cm) diaphragm
Mid Frequency Transducer: 6.5” (16.5cm) aluminum cone with cast polymer basket. Sealed chamber format. Rigid structured dust cap to reduce cone break-up modes.
Low Frequency Transducer: Two 8” (20.3cm) aluminum cone with cast aluminum basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes.
Crossover Components: Custom air core coil and low DCR steel laminate inductors. Polypropylene film capacitors in series & low DF electrolytic caps in parallel. Tweeter thermal/current protection.
Inputs: Custom 5-way bi-wire tool-less binding posts
Weight: 66 lbs.
Dimensions: 48" x 11.4" x 14.4 "
$1,299.99 each

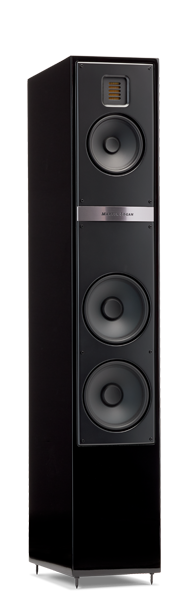

The secret to Motion 40i's outstanding performance lies in its Folded Motion® tweeter, 5.5-inch aluminum cone midrange driver, dual 6.5-inch aluminum cone woofers with a rear-firing bass port, and a proprietary Vojtko crossover network. This double woofer design produces vibrant, accurate deep bass performance. Motion 40i delivers the classic broad soundstage of the Motion Series from a newly designed enclosure enhanced by the slightest of modifications, including the drive-stabilizing dust cap design, stiffened motor suspension, and low-mounted woofers to reduce an acoustically harmful phenomenon known as floor bounce. The speaker's enclosure sports a reinforced baffle and a fabric grille. Available in gloss black, matte white, and red walnut.
Specs:
Frequency Response 40–25,000 Hz ±3dB
Recommended Amplifier Power 20—300 watts per channel
Horizontal Dispersion 80°
Vertical Dispersion 80°
Sensitivity 92 dB/2.83 volts/meter
Impedance 4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency 500 & 2,600 Hz
High Frequency Transducer 1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm
Mid Frequency Transducer 5.5" (14cm) aluminum cone in a non-resonant asymmetrical chamber format. Cast polymer basket. Rigid structured dustcap reduces cone break-up.
Low Frequency Transducer Two 6.5" (16.5cm) aluminum cone woofers in a non-resonant asymmetrical chamber format. Cast polymer basket. Rigid structured dust caps reduce cone break-up.
Components Precision Vojtko™ w/custom air core coil & low DCR steel laminate inductors. Polyester film capacitors in series & low DF electrolytic capacitors in parallel
Inputs Custom 5-way bi-wire tool-less binding posts
Weight 49 lbs.
Dimensions 42.5" x 7.6" x 12.8 "

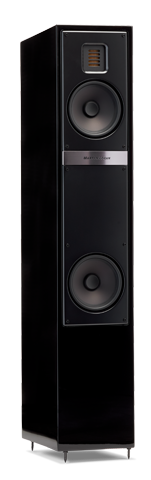

$999.99 each
Frequency Response: 46–25,000 Hz ±3dB
Recommended Amplifier Power: 20—200 watts per channel
Horizontal Dispersion: 80°
Vertical Dispersion: 80°
Sensitivity: 90 db/2.83 volts/meter
Impedance: 4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency: 500 & 2,600 Hz
High Frequency Transducer: 1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm
Low Frequency Transducer: Two 5.5" (14cm) aluminum cone woofers in a non-resonant asymmetrical chamber format. Cast polymer basket. Rigid structured dust caps reduce cone break-up.
Components: Precision Vojtko™ with custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel
Inputs: Custom 5-way bi-wire tool-less binding posts
Weight: 37 lbs.
Dimensions: 36.6" x 6.8" x 11.7 "

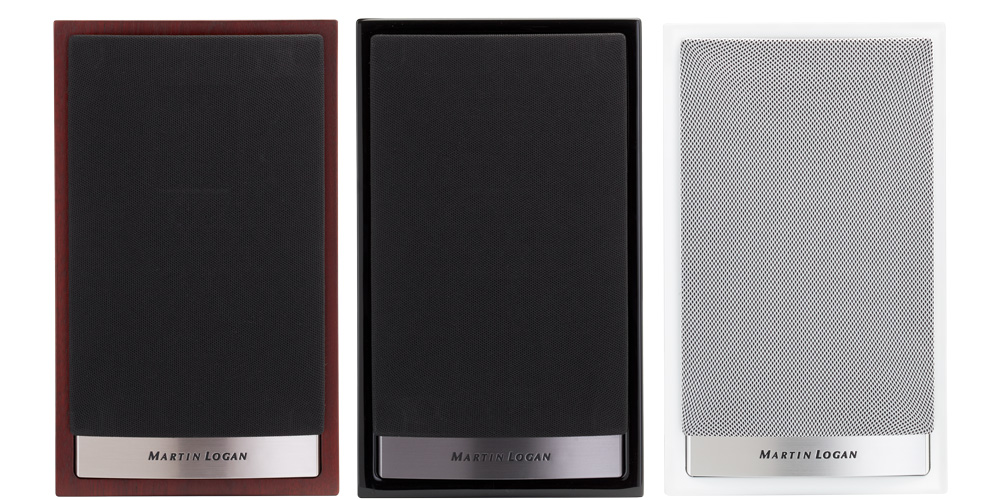

Motion 15i
$449.99 each
The Motion 15i bookshelf speaker features a Folded Motion® tweeter, a 5.25-inch aluminum cone woofer with a rear-firing bass port, and a proprietary Vojtko crossover network to deliver refined sound with very good dynamic range and excellent clarity. Motion 15i delivers the classic broad soundstage of the Motion Series from a newly designed enclosure enhanced by the slightest of modifications, including the drive-stabilizing dust cap design and stiffened motor suspension. The speaker’s cabinet sports a reinforced baffle and a fabric grille. Available in three stylish finishes: gloss black, matte white, and red walnut.
Specs:
| Frequency Response | 60–25,000 Hz ±3dB |
| Recommended Amp Power | 20—200 watts per channel |
| Horizontal Dispersion | 80° |
| Vertical Dispersion | 80° |
| Sensitivity | 92 dB/2.83 volts/meter |
| Impedance | 5 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers. |
| Crossover Frequency | 2,700 Hz |
| High Frequency driver | 1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm |
| Low Frequency driver | 5.25” (13.3cm) aluminum cone with cast basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes. |
| Components | Custom air core coil and low DCR steel laminate inductors. Polypropylene film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection. |
| Inputs | Custom 5-way tool-less binding posts |
| Weight | 12 lbs. |
| Dimensions | 11.4" x 6.8" x 9.5 " |
Motion4i
$249.99 each
Specs:
| Frequency Response | 70–23,000 Hz ±3dB |
| Recommended Amp Power | 20—150 watts per channel |
| Horizontal Dispersion | 80° |
| Vertical Dispersion | 80° |
| Sensitivity | 90 dB/2.83 volts/meter |
| Impedance | 4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers. |
| Crossover Frequency | 2,900 Hz |
| High Frequency Transducer | 1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm |
| Low Frequency Transducer | 4" (10.2cm) paper cone with stamped steel basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes. Folded bass reflex port. |
| Components | Custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection. |
| Inputs | Push style with banana jacks |
| Weight | 6 lbs. (2.72 kg) |
| Dimensions | 12.6" x 5.6" x 5.7 " |
Subwoofers
Powerful. Compact. Precise. MartinLogan Dynamo and Blaanced Force subwoofers offer audiophile grade performance, home-friendly aesthetics, and a bevy of wireless features including app based controls, app based Anthem Room Correction, and optional wireless audio connections.

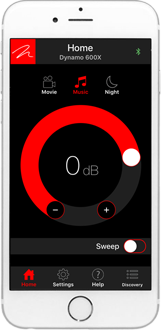

MARTINLOGAN SUB CONTROL APP
(AVAILABLE FOR iOS AND ANDROID)
MartinLogan’s Subwoofer Control app uses a Bluetooth connection to simplify setup and configuration of Dynamo 600X, 800X, 1100X, and 1600X. App based controls include volume level, low-pass filter (frequency and order), phase, 20–30Hz level, three preset listening modes, and control of Anthem Room Correction. A unique tone sweep feature assists users in locating areas in listening rooms where troublesome rattles or resonances may occur. A single press of a button allows listeners to initiate a tone sweep from 20–120Hz. If a rattle or resonance occurs in the room any frequency can be held, allowing the listener to investigate and identify the source of the unwanted noise.
BalancedForce® Alignment
Opposing Aluminum Element Woofers or Deep, Clean Bass
Dual low-distortion woofers pair a high-power magnet structure with 10- and 12-inch aluminum cone diaphragms to deliver huge excursion and sound output while preserving minute bass details, all without a hint of distortion. The cone material's exceptional damping properties ensure the smooth, non-resonant response necessary for seamless blending with high-resolution full-range loudspeakers.
These woofers, spaced 180 degrees apart in a 'BalancedForce' configuration, operate in exact opposition, to nullify distortion causing cabinet vibrations and deliver pure bass energy. Traditional subwoofer enclosures suffer from an equal and opposite reaction to the cone's movement, generating acoustic vibrations within the cabinet. You feel this by touching the cabinet. Although the "physics" of this phenomenon actually cause a subwoofer cabinet to resonate or even dance, most subwoofer designers apply weight or mass to the cabinet to minimize such disturbances, but still leave one byproduct—"smeared bass". BalancedForce is an elegantly simple solution that removes the variable of cabinet vibration contributions from the acoustic equation.
Advanced Ultra-Efficient D-Class Amplifier
BalancedForce subs match powerful proprietary switching amps with incredible woofer drivers resulting in tightly defined bass while keeping distortion at the lowest possible levels. The BalancedForce 210 features an 850-watt class-D switching amplifier capable of a 1700-watt peak operating at over 90% efficiency. BalancedForce 212 features dual 850-watt amplifiers (one for each woofer) with a total system power of 1700-watts (3400-watts system peak).
Low-noise, high-power transformers and switching power supplies feature high-quality MOSFET transistors, noise-suppression networks, and control circuitry to provide tremendous levels of current with extremely low levels of distortion. Split power supply rails minimize distortion while maximizing switching efficiency. Military grade glass epoxy circuit boards, temperature sensors, and protection circuitry guarantee quality sound and reliable trouble-free operation.
PBK Room Correction & 25Hz Level Control
Although correct placement plays a key role in optimizing subwoofer performance, positioning a subwoofer often requires compromises. The optional MartinLogan Perfect Bass Kit (PBK, sold separately) uses a computer and microphone to listen throughout the listening environment and tailor the sub's performance to the unique acoustic properties of a room—resulting in clean, powerful bass down to the lowest frequencies.
Additionally, a built-in 25Hz level control allows listeners to adjust subwoofer output by ±10dB and compensate for excessive room gain by cutting output in the 20- to 30-Hz range, or to accentuate the feeling of deep-bass energy by augmenting those frequencies.
Beautiful Finishes
High-gloss black cabinets and top trim are standard. Top trim is available in a variety of optional high-gloss, hardwood, and real-wood veneer finishes.
Sealed Cabinets
Although ports are a convenient and cost-effective way of increasing low-frequency output, their reliance on resonant energy impairs bass quality. The BalancedForce subwoofer's sealed system exhibits less transient-blurring group delay while maintaining smooth, consistent response, regardless of music or movie source material.
Top Mounted Controls
Top mounted controls are discretely hidden beneath a smoked glass accent panel allowing easy access to fine tune the subwoofer's settings.
Simultaneous LFE and 2-Channel Connections for Seamless System Integration
Robust connection and control systems allow simultaneous connection of both 2-channel stereo music and multi-channel home theater and allows each source to have individual crossover and level settings, giving listeners a perfect performance in every application. LFE input via RCA or XLR effectively uses no low-pass filter, leaving crossover control to the processor. Left and right RCA, XLR, and speaker level inputs integrate discrete user-adjustable or speaker specific custom-installed audiophile grade low-pass filters allowing different level and crossover points when playing back two channel music.
BalancedForce 212
Dual 12" drivers with two x 850 watts with 3400 watt peaks|
Frequency Response |
18–120 Hz ±3dB; Anechoic through LFE effects input |
|
Impedance |
RCA: 10,000 Ohms |
|
Low Frequency Transducer |
Two 12" (30.5cm) cast-basket, highexcursion, aluminum cone with extended throw driver assembly, sealed non-resonant asymmetrical chamber format |
|
Amplifier |
2 x 850 watts |
|
Room Correction (Bass Section) |
Perfect Bass Kit (PBK) Ready (Sold Separately) |
|
Audio Controls |
On, Auto (12V Trigger), Off |
|
Low Pass Filter Frequency |
30 - 80Hz |
|
Inputs |
RCA: Left, Right and LFE. |
|
Power Draw |
Typical: 250 Watts |
|
Weight |
140 lbs. (63.5 kg) |
|
Dimensions |
22.6" x 22.6" x 22.9 " |
BalancedForce 210
Dual 10" drivers with 850 watts with 1,700 watt peaks$3499.99
|
Frequency Response |
20–120 Hz ±3dB; Anechoic through LFE effects input |
|
Impedance |
RCA: 10,000 Ohms |
|
Low Frequency Transducer |
Two 10" (25.4cm) cast-basket, highexcursion, aluminum cone with extended throw driver assembly, sealed non-resonant asymmetrical chamber format |
|
Amplifier |
850 watts |
|
Room Correction (Bass Section) |
Perfect Bass Kit (PBK) Ready (Sold Separately) |
|
Audio Controls |
On, Auto (12V Trigger), Off |
|
Low Pass Filter Frequency |
30 - 80Hz |
|
Inputs |
RCA: Left, Right and LFE. |
|
Power Draw |
Typical: 125 Watts |
|
Weight |
96 lbs. (43.5 kg) |
|
Dimensions |
19" x 19.1" x 19.4 " |
Dynamo series
$899.99
A great sub at a reasonable cost. The 10" long throw driver combined with the 600 watt amp in a sealed box means tight clean bass for quality audio and when combined with the Anthem room correction you get a flat extended bass down to 24Hz.
The Future of Audio: Integrated Systems?
"In the end, bass on this system was deep, controlled, and less distracting than on many systems. I had a greater sense than is usual that bass was just part of the music, not something generated by an audio system." —Tom Martin, The Absolute SoundRead the full review here: http://www.theabsolutesound.com/articles/the-future-of-audio-integrated-systems/
- 10-inch inverted surround poly cone woofer
- 600 Watts (peak) amplifier
- Sealed non-resonant cabinet
- Digital control system via smartphone app
- Anthem Room Correction (ARC®) via smartphone app or PC
- Robust connection options, including RCA and speaker level inputs; 12V Trigger
- Configurable front or down-firing design
- SWT-X Wireless Receiver & Transmitter (sold separately)
Frequency Response: 24–200 Hz ±3 dB. Anechoic in LFE mode.
Low Frequency Transducer: 10” (25.4cm) high-excursion, inverted surround, polypropylene cone in a stamped steel basket with extended throw driver assembly; sealed non- resonant cabinet design.
Amplifier: 300 Watts (600 watts peak)
Software: Sub Control App: iOS and Android
Anthem Room Correction: iOS, Android, and PC
Room Correction: Anthem Room Correction (ARC)
Controls (Backplate): Level: Min–Max / Setting Control: Local, App / Power Mode: On, Trigger, Auto
Controls (via Bluetooth)
Level: -40 to 12dB
Low-Pass Filter (Frequency): 35–120Hz
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Music, Night, Movie
20–30Hz Level: ±10dB
Anthem Room Correction (ARC): On, Off
Tone Sweep (20–120Hz): On, Off, Pause (Frequency)
Inputs (Audio): Line Level: Left, Right, and LFE / Speaker Level: Left and Right via banana jacks
Inputs (Audio, Wireless): SWT-X Receiver & Transmitter (sold separately)
Weight: 30 lbs. (13.6 kg)
Dimensions (HxWxD), Front-Firing: 14.6" x 12.4" x 12.7"
Dimensions (HxWxD), Down-Firing: 13.7" x 12.4 " x 13.1 "
Finish: Satin Black

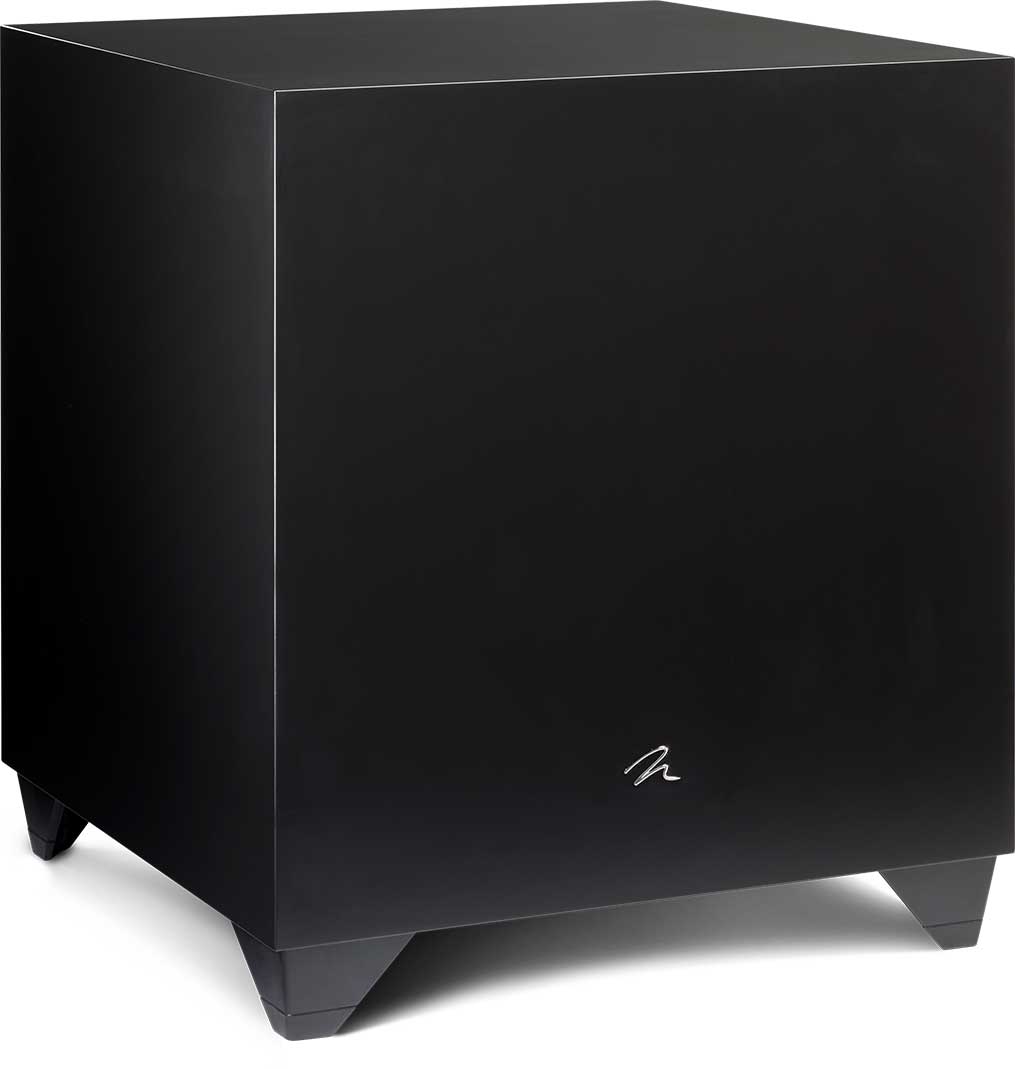

Dynamo 1100X
$1,499.99
A serious 12" subwoofer to make killer bass with control from your phone & Room correction.
The Dynamo 1100X features a 1,300 Watt (peak) amplifier, 12-inch audiophile grade woofer, extensive input options, optional wireless connectivity, control via a Bluetooth app, Anthem Room Correction (ARC®), and user-configurable front- or down-firing design. Dramatic bass detail and attack, superb extension, and room-shaking output ensure a compelling music and home theater experience.
MartinLogan Dynamo 1100X Subwoofer Reviewed
"The 1100X seriously impressed me for the price, offering exceptional build quality, seamless sound quality, impressive bass extension, and feature-rich software control."—Dylan Seeger, HomeTheaterReview.com
Read the full review: https://hometheaterreview.com/martinlogan-dynamo-1100x-subwoofer-reviewed/
—Matthew Poes, AV Nirvana
- 12-inch inverted surround poly cone woofer
- 1,300 Watts (peak) amplifier
- Sealed non-resonant cabinet
- Digital control system via smartphone app
- Anthem Room Correction (ARC®) via smartphone app or PC
- Robust connection options, including XLR, RCA, and speaker level inputs; 12V Trigger
- Configurable front or down-firing design
- SWT-X Wireless Receiver & Transmitter (sold separately)
Frequency Response: 22–200 Hz ±3 dB. Anechoic in LFE mode.
Low Frequency Transducer: 12” (25.4cm) high-excursion, inverted surround, polypropylene cone in a stamped steel basket with extended throw driver assembly; sealed non- resonant cabinet design.
Amplifier: 650 Watts (1300 watts peak)
Software: Sub Control App: iOS and Android
Anthem Room Correction: iOS, Android, and PC
Room Correction: Anthem Room Correction (ARC)
Controls (Backplate): Level: Min–Max / Setting Control: Local, App / Power Mode: On, Trigger, Auto
Controls (via Bluetooth)
Level: -40 to 12dB
Low-Pass Filter (Frequency): 35–120Hz
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Music, Night, Movie
20–30Hz Level: ±10dB
Anthem Room Correction (ARC): On, Off
Tone Sweep (20–120Hz): On, Off, Pause (Frequency)
Inputs (Audio): Line Level: Left, Right, and LFE / Speaker Level: Left and Right via banana jacks
Inputs (Audio, Wireless): SWT-X Receiver & Transmitter (sold separately)
Weight: 46 lbs.
Dimensions (HxWxD), Front-Firing: 10.2" x 15" x 16.2"
Dimensions (HxWxD), Down-Firing: 17.1" x 15 " x 15.5"
Finish: Satin Black
Dynamo 1600X
$1,999.99
The 1600X is the biggest bad boy in the Dynamo line. This 15" sealed woofer driven by an 1800 watt amp will move your room in a home thester or add a real foundation to your high end audio system. And Anthem room correction means the bass is tight and clean with no more room nodes that plague every system.
Dynamo 1600X features an 1,800 Watt (peak) amplifier, 15-inch audiophile grade woofer in a sealed box, real 20Hz bass, extensive input options, optional wireless connectivity, control via a Bluetooth app, Anthem Room Correction (ARC®), and user-configurable front- or down-firing design. Dramatic bass detail and attack, superb extension, and room-shaking output ensure a compelling music or home theater experience.
Dynamo 1600X
Product Highlights
- 15-inch inverted surround poly cone woofer
- 1,800 Watts (peak) amplifier
- Sealed non-resonant cabinet
- Digital control system via smartphone app
- Anthem Room Correction (ARC®) via smartphone app or PC
- Robust connection options, including XLR, RCA, and speaker level inputs; 12V Trigger
- Configurable front or down-firing design
- SWT-X Wireless Receiver & Transmitter (sold separately)
MartinLogan Dynamo 1600X Powered Subwoofer Review
"The response I heard in the low bass was fuller than I was expecting and right up there with subwoofers that cost many times more than the Dynamo 1600X. This sub could produce these high levels over sustained periods and never even break a sweat. I mean there really were times I thought the bass would break something in the room but it just kept on keeping on."Jim Clements, Secrets of Home Theater and High Fidelity
Read the entire review here: https://hometheaterhifi.com/reviews/speaker/subwoofers/martinlogan-dynamo-1600x-powered-subwoofer-review/
| Frequency Response | 20–200 Hz ±3 dB. Anechoic in LFE mode. |
| Impedance | RCA: 8,300 Ohms Speaker Level: 2,000 Ohms (red to black) XLR: 28,000 Ohms (pin 2 to 3) |
| Low Frequency Transducer | 15” (38.1cm) high-excursion, inverted surround, polypropylene cone in a cast aluminum basket with extended throw driver assembly; sealed non- resonant cabinet design. |
| Amplifier | 900 Watts (1,800 peak) |
| Software | Sub Control App: iOS and Android Anthem Room Correction: iOS, Android, and PC |
| Room Correction | Anthem Room Correction (ARC) |
| Controls (Backplate) | Level: Min–Max Setting Control: Local, App Power Mode: On, Trigger, Auto |
| Controls (via Bluetooth) | Level: -40 to 12dB Low-Pass Filter (Frequency): 35–120Hz Low-Pass Filter (Order): Bypass, Third, Fourth Phase: 0–180° (1° Increments) Phase (Polarity): Normal, Inverted Preset Listening Modes: Music, Night, Movie 20–30Hz Level: ±10dB Anthem Room Correction (ARC): On, Off Tone Sweep (20–120Hz): On, Off, Pause (Frequency) |
| Inputs (Audio) | Line Level: Left, Right, and LFE Speaker Level: Left and Right via banana jacks XLR: LFE |
| Inputs (Audio, Wireless) | SWT-X Receiver & Transmitter (sold separately) |
| Inputs (Other) | USB: Micro USB (for ARC/Firmware Update) Trigger: 3.5mm, 5–24 DC |
| Feet | Rubber, ETC (Energy Transfer Coupler) Spikes |
| Weight | 57 lbs. |
| Dimensions (HxWxD), Front-Firing | 20.1" x 17.9" x 19.1" |
| Dimensions (HxWxD), Down-Firing | 20" x 17.9 " x 18.5 " |
| Finish | Satin Black |
