ELYSIAN Goals

The Elysian series results from the most ambitious research and development project in Wharfedale’s storied 90-year history. The design team took on the goal of retaining all that audiophiles have admired about the “British sound,” such as warmth, intimacy, freedom from listening fatigue, and uncolored response. Simultaneously, they sought to improve those qualities that audiophiles of today value, such as fine detail retrieval, spacious, three-dimensional imaging, and freedom from enclosure-induced coloration's. On top of that, the design brief noted that they need to be beautiful and finely finished enough to be worthy of placement in the finest homes and galleries.

AMT Tweeter

ELYSIAN Midrange

ELYSIAN Bass

The woofer cones are the same low mass yet stiff woven glass fiber matrix as the midrange driver. The most advanced version of Wharfedale’s unique port system – the Slot Loaded Profiled Port (SLPP) – vents the woofers. As with all other bass port designs, the woofer’s rear radiation is not wasted but vented into the room. But that is where the similarities end.

The bass energy in the enclosure is under high pressure. In conventional port designs, air turbulence occurs when the bass waves abruptly exit into the low-pressure room. This turbulence wastes bass and often causes annoying “chuffing” or “popping” sounds, sometimes referred to as port noise.

In the SLPP system, both ends of the port tube are flared with a semi-parabolic flange to linearize airflow through the tube. The low-frequency energy is then vented to a slot at the speaker’s base, specially profiled to equalize the high internal pressure to the room’s low pressure. The result is an entirely natural recreation of bass instruments’ fundamental notes presented with authority and articulation, without port-induced distortion and noise. The bass units and SLPP bass reflex system provide the massive foundation on which the rest of the musical performance sits, letting you feel as well as hear the full impact of thunderous low-frequency information.

ELYSIAN Crossover

Combining the drivers’ outputs is an advanced computer-modeled crossover that has been developed over hundreds of hours of listening tests, fine-tuned to make sure that the blend between the drive units is seamless. Of particular note is the phase consistency between the drivers, allowing the power response to be highly linear and consistent throughout your listening room. Elysian crossovers use the highest grade, acoustically transparent components throughout, ensuring that you hear all the musical detail with nothing held back. You’ll hear the full body of instruments like cello and bass guitar without straining to enjoy the complete dynamics of the musical recital. Whether you are listening to solo piano, a full orchestra or a jazz trio, or a multi-instrument rock performance, ELYSIAN is more than capable of bringing the thrill and excitement of the performance into your listening room.

ELYSIAN Enclosure

Specifications:

Shown on optional stands $799.00/Pr


Very high quality monitor loudspeaker

Specs

Treble:	3.5" (90mm) Air Motion Transformer
	-
Bass:	7" (180mm) coated fiberglass matrix cone
Nominal Impedance:	4Ω (compatible 8Ω )
Crossover Frequency:	2.5kHz
Frequency Response:	49Hz ~ 22kHz (+/-3dB)
Sensitivity:	89dB (2.83V @1m)
Recommended Amplifier Power:	25 - 175W
Weight (ea):	33lbs

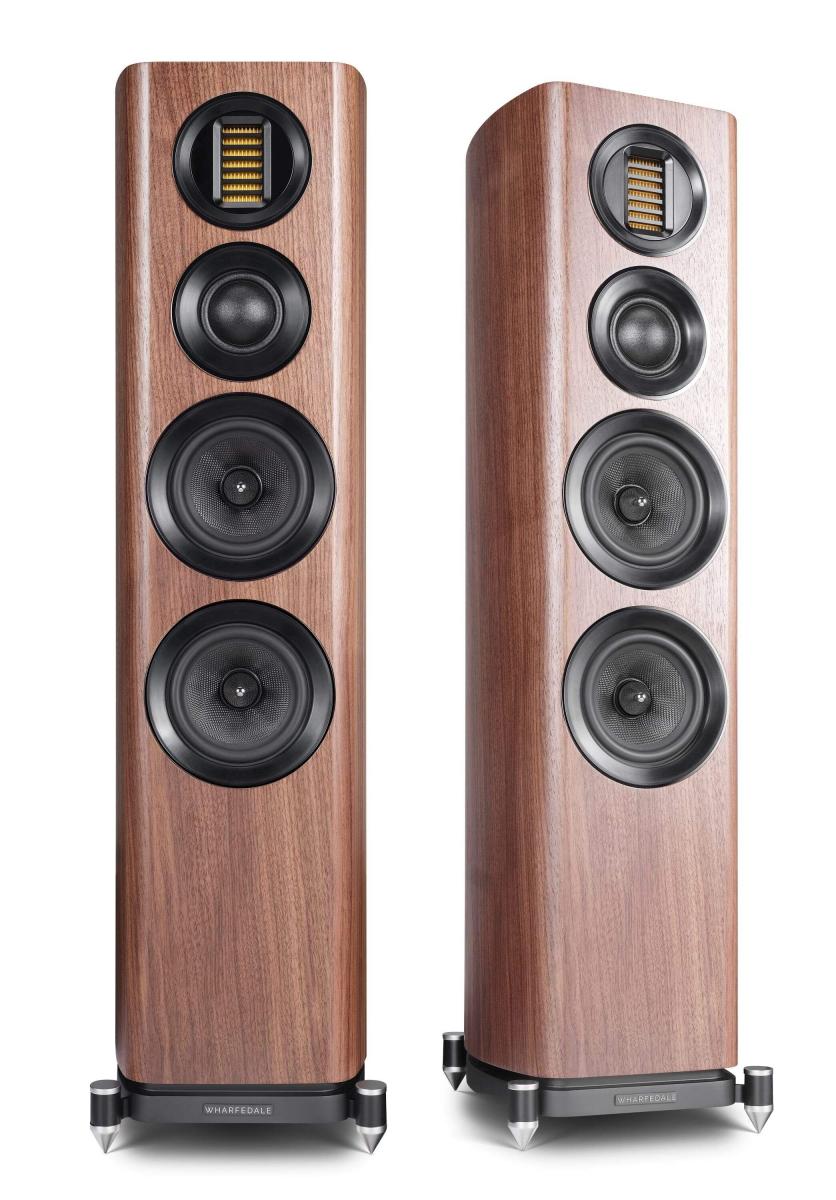

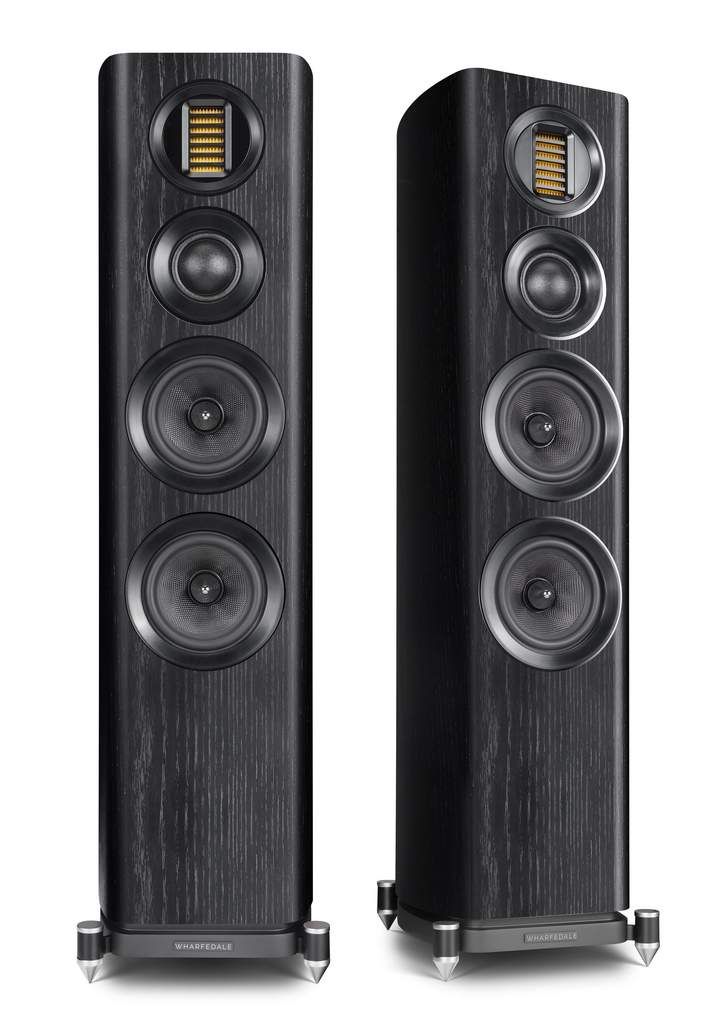

Evo 4.3 $1698.00 pr Sale $1498.00 pair Available in Walnut, Black Oak and White oak EVO4 represents the advancement of rationally priced audiophile-grade loudspeakers. Developed in parallel with the flagship Elysian range, EVO4 shares many of the same technologies, the tonal accuracy, and superb build quality with its larger cousin – at a fraction of the cost. It uses an AMT tweeter, dome midrange and dual 5.25" woofer system. EVO4 retains classic British speaker sound: natural, musical, and addictive, free from listening fatigue while adding a level of transparency, ultra-low colouration, and detail surpassed only by Wharfedale’s Elysian range. EVO4 is a unique opportunity to experience ultra-high-end sound and style at a modest cost.   Evo 4.4 $2198.00 pair Sale $1999.00 pair Available in Walnut, Black Oak and White oak EVO4 represents the advancement of rationally priced audiophile-grade loudspeakers. Developed in parallel with the flagship Elysian range, EVO4 shares many of the same technologies, the tonal accuracy, and superb build quality with its larger cousin – at a fraction of the cost. It uses an AMT tweeter dome midrange and dual 6.5" woofers. EVO4 retains classic British speaker sound: natural, musical, and addictive, free from listening fatigue while adding a level of transparency, ultra-low colouration, and detail surpassed only by Wharfedale’s Elysian range. EVO4 is a unique opportunity to experience ultra-high-end sound and style at a modest cost.
Linton $1699.00 Pr   Hi quality 3 way large monitor with excellent  reviews
