MartinLogan Loudspeakers
Uncompromising performance. Unflinching accuracy. Unwavering reliability. Harnessing the myriad technical advantages of electrostatic principles to recreate sound in its truest form—this is what MartinLogan is all about.


MartinLogan makes some of the worlds finest loudspeakers. They pioneered the curved electrostatic driver to get around the problem that other electrostatics have of no dispersion. and they married this CLS driver to dynamic woofers to get full range speakers with the claruty of an electrostat witht he bass and dynamics of a dynamic speaker. Over the years their line has expanded to now include subwoofers and a very high quality line of dynamic speakers that use their Folded Motion® XT tweeter. The subwoofers are excellent and designed to sound great in music systems but they are also very good for multi-channel systems.


Electrostatic speakers are the MartinLogan Legacy

Curvilinear Line Source (CLS) Electrostatic Panel

All Martin Logan electrostatic speakers incorporate their unique CLS technology. Through our proprietary manufacturing method, they have built-in the panel’s gentle horizontal curvature. This unique design enhances the high frequency detail produced by the large radiating surface, without compromising overall sound quality. Notice how the gentle modern curve and perforation pattern gives way to the flat grille of the woofer section.

Controlled Dispersion Sound Radiation

The sound we hear from a loudspeaker is a combination of direct radiation from it to our ears, and reflections off of room surfaces—walls, floor, and ceiling. How our brains integrate this information is far from simple. Depending on the angle of incidence to the ears and the arrival-time difference between direct and reflected sound, reflections can either blur detail and stereo imaging, or enhance the natural impression of depth and openness.

Electrostatic panels, which are true dipole speakers, produce a nearly-ideal controlled dispersion radiation pattern. They send very little sound to the sides, thereby minimizing side-wall reflections, whose short arrival times tend to interfere with the perception of the direct sound. Their strong rear radiation, however, produces a generous amount of natural, ambience-enriching later-arriving mid- and upper register information.

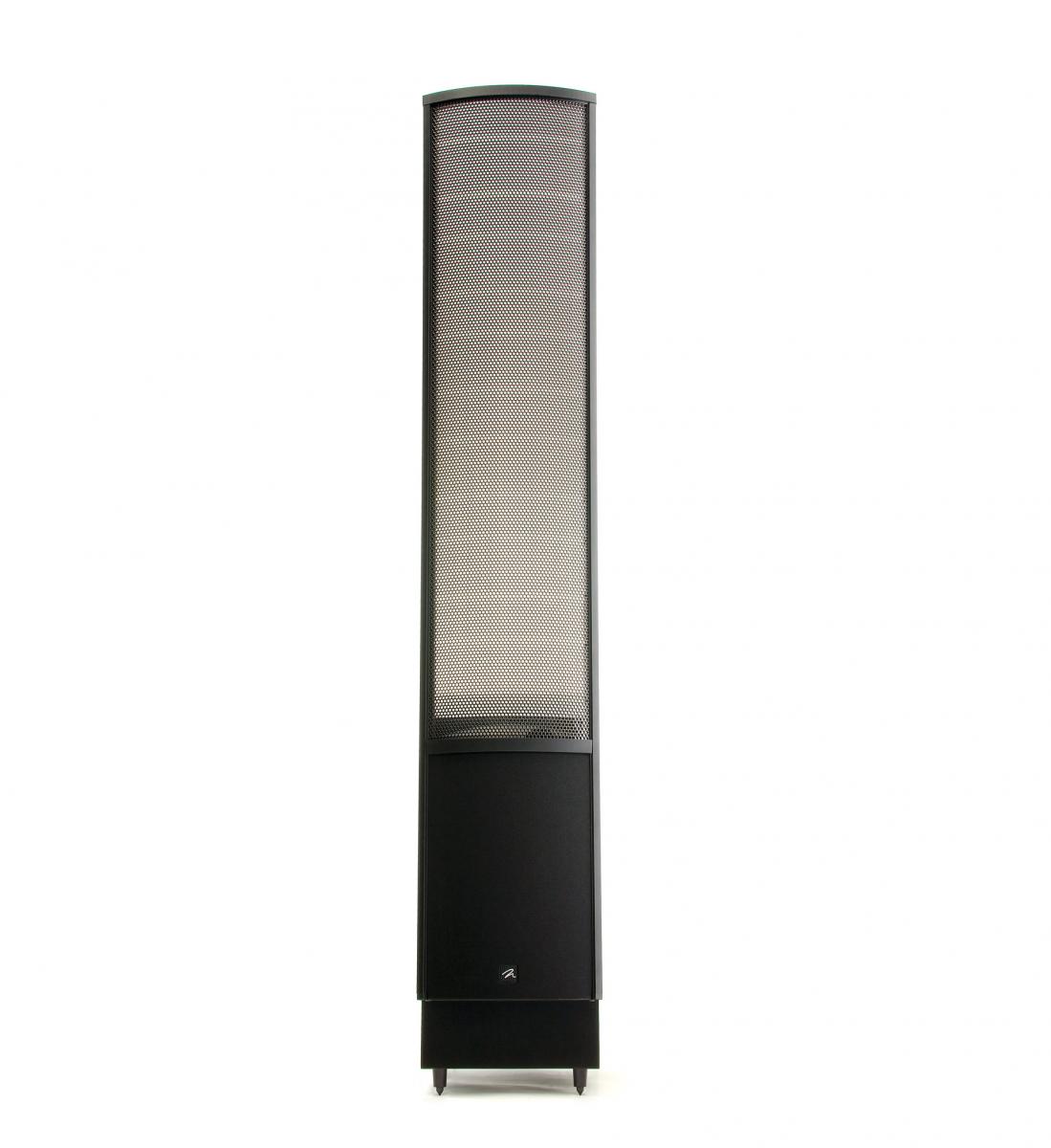

ElectroMotion ESL
Amazing performance for the money
$2499.98 Pair
Long time MartinLogan enthusiasts are sure to describe ElectroMotion ESL as the second-coming of the legendary Aerius electrostatic speaker which debuted in 1992 and went on to sell in record numbers. This new ESL, however, boasts 40 percent more radiating surface, a superbly integrated and authoritative woofer, and a sensitivity rated at 91dB. In addition, the ESL is capable of being effortlessly powered by both receivers and high-end amplifiers alike.

The ElectroMotion ESL represents a bold new direction for electrostatic loudspeaker design. We were shocked at the perfrmace of this speaker. Real high end performance at a price that everyone can afford and at 91dB efficiency it can be driven by affordable electronics. The EM-ESL   features a full-sized 34-inch tall curvilinear XStat™ electrostatic transducer and a superbly integrated high-performance woofer, the new EM-ESL performs more like a mini-flagship than an entry level audiophile speaker. Designed for both 2-channel music enthusiasts and those seeking the worlds most articulate and dynamic multi-channel home theater systems, the EM-ESL is the most compelling 'affordable' audiophile-grade speaker ever brought to market.

We have complete systems starting at $3999.00 delivered with 150wpc integrated amp, DAC, speakers, and cables

Full info is at: https://www.martinlogan.com/en/product/electromotion-esl


Frequency Response 42–22,000 Hz ±3dB
Recommended Amp Power 20—300 watts per channel
Horizontal Dispersion 30°
Vertical Dispersion 34" (71cm) line source
Sensitivity 91 dB/2.83 volts/meter
Impedance 6 Ohms, 1.6 @ 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency 500Hz
High Frequency Transducer XStat™ CLS™ electrostaic transducer » Panel Dimensions: 34" x 8.6" (86 x 22cm) » Radiating Area: 292 in² (1,892 cm² )
Low Frequency Transducer 8" (20.3cm) high excursion, high-rigidity paper cone with extended throw drive assembly, non-resonance asymmetrical chamber format; bass reflex
Components Custom-wound audio transformer, air core coils, large steel laminate inductors, polyester capacitors, and low DF electrolytic capacitors
Inputs Push style with banana jacks
Weight 35.5 lbs. (16.1 kg)
Dimensions 52.1" x 9" x 16.3 "


ElectroMotion ESL X
Our favorite for best value in the line
$3999.98 pair



Our favorite as the best value in the electrostatic line. The larger more expensive models are better but if you are looking for the best bang for the buck the ElectroMotion ESL X is it.

The ElectroMotion ESL X features a new larger XStat™ electrostatic transducer, with a radiating area over 50 square inches larger than the EM-ESL model. The two 8-inch high-excursion woofers are housed in a non-resonant asymmetrical bass reflex (ported) chamber, in a surprisingly compact enclosure. The woofers have custom engineered high-rigidity paper cones, with extended-throw driver assemblies.
Component elements within the EM-ESL X replicate the design and performance of components used on many of MartinLogan’s more expensive loudspeakers, such as custom-wound transformers, air-core coils, large steel laminate inductors, polyester and low DF electrolytic capacitors. Custom 5-way bi-wire binding posts allow for secure wire connections. System Frequency Response is 41–22,000 Hz ±3db. Recommended amplifier power is 20–400 watts per channel. Impedance is rated at 6 ohms (1.6 ohms at 20 kHz); the EM-ESL X is compatible with 4, 6, or 8 ohm rated amplifiers. These babies sing with a reasonably priced integrated amp.


We have complete systems from $6499.00 delivered including a 300wpc integrated amp with DAC, balanced power conditioner and cables.
Just run your computer, streamer or turntable into this system for audio Nirvana!




ElectroMotion X front and rear shots
Specs:
Frequency Response 41–22,000 Hz ±3dB
Recommended Amp Power 20—400 watts per channel
Horizontal Dispersion 30°
Vertical Dispersion 40" (101.6cm) line source
Sensitivity 91 dB/2.83 volts/meter
Impedance 6 Ohms, 1.6 @ 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency 400Hz
High Frequency Transducer XStat™ CLS™ electrostaic transducer » Panel Dimensions: 40" x 8.6" (102 x 22cm) » Radiating Area: 344 in² (2,244 cm² )
Low Frequency Transducer Two 8” (20.3 cm) high excursion, high-rigidity paper cones with extended throw driver assembly, non-resonance asymmetrical chamber format, bass reflex.
Components Custom-wound audio transformer, air core coils, large steel laminate inductors, polyester capacitors, and low DF electrolytic capacitors
Inputs Custom 5-way bi-wire tool-less binding posts
Weight 52 lbs.
Dimensions 59.2" x 9.4" x 20.7 "


Full info is here: https://www.martinlogan.com/en/product/electromotion-esl-x

Classic ESL 9
Amazing performance
$6499.98 pair


Classic ESL 9 is your ticket to a life-changing experience and a masterpiece of audio performances.
This completely passive design features a 9.2-inch (CLS™) XStat™ electrostatic transducer, dual 8-inch aluminum-Cone woofers, and custom 5-way bi-wire tool-less binding posts. With an almost 20% larger CLS panel compared to the ESL X, better vertical dispersion, dual upgraded metal woofers and higher end parts all around they are the ultimate expression of an affordable state of the art speaker.

Specs:
Frequency Response 34–23,000 Hz ±3dB
Recommended Amp Power 20—400 watts per channel
Horizontal Dispersion 30°
Vertical Dispersion 44" (112cm) line source
Sensitivity 90 dB/2.83 volts/meter
Impedance 4 Ohms, 0.8 at 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency 380Hz
High Frequency Transducer XStat™ CLS™ electrostatic transducer » Panel Dimensions: 44" x 9.2" (112 x 23cm) » Radiating Area: 405 in² (2,576 cm² )
Low Frequency Transducer Two 8” (20.3 cm) cast basket, high excursion, rigid aluminium cone woofers with extended throw drive assembly, non-resonance asymmetrical chamber format
Components Custom-wound audio transformer, air core coils, low DCR steel laminate coils, polyester capacitors
Signal Inputs Custom 5-way bi-wire tool-less binding posts
Power Draw Max: 2W per channel Standby: <1W per channel
Weight 78 lbs. (35.4 kg)
Dimensions 59.8" x 10.4" x 25.4 "

Motion series

The Motion Series is inspired by the performance of their ultra-high-end electrostatic loudspeakers and is perfect for music or home cinema lovers. They offer full range floor-standing speakers, and gutsy compact bookshelf models, with timbre-matched centers, all featuring MartinLogan’s cutting edge Folded Motion tweeter and backed by exceptional components and hand-built crossovers. They reveal a richly detailed audio experience at unrivalled prices.


The success of the Motion Series is directly attributed to its close relation to MartinLogan’s legendary ultra-high-end electrostatic loudspeakers. The desire to transmute that level of performance into a more traditional loudspeaker at a more affordable price drove the initial design imperatives that created the Motion Series.




Motion 60XTi
$1749.99 each



This is the flagship of the Motion Series. It's a powerful floorstanding loudspeaker featuring a Folded Motion® XT tweeter, 6.5-inch aluminum cone midrange driver, dual 8-inch aluminum cone woofers with rear-firing bass ports, and a proprietary Vojtko crossover network. XT stands for extreme: lifelike details from the lightning-fast Folded Motion XT tweeter, open and authentic midrange performance, coupled with deep, musical bass response. These classic performance technologies have been enhanced by the slightest of modifications, including the drive-stabilizing dust cap design, stiffened motor suspension, and low-mounted woofers to reduce an acoustically harmful phenomenon known as floor bounce. The speaker's enclosure sports increased internal bracing, a reinforced baffle, and a fabric grille. Available in three stylish finishes: gloss black, matte white, and red walnut.

Specs:
Frequency Response:   35–25,000 Hz ±3dB
Recommended Amplifier Power:   20—400 watts per channel
Horizontal Dispersion:   80°
Vertical Dispersion:   30°
Sensitivity:   94 dB/2.83 volts/meter
Impedance:   4 Ohms Compatible with 4, 6, or 8 Ohm rated amps
Crossover Frequency:   400 & 2,200 Hz
High Frequency Transducer:  1.25" × 2.4" (3.2cm × 6.1cm) Folded Motion XT Transducer with 4.5" x 2.75" (11.4cm × 7cm) diaphragm
Mid Frequency Transducer:   6.5” (16.5cm) aluminum cone with cast polymer basket. Sealed chamber format. Rigid structured dust cap to reduce cone break-up modes.
Low Frequency Transducer:  Two 8” (20.3cm) aluminum cone with cast aluminum basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes.
Crossover Components:   Custom air core coil and low DCR steel laminate inductors. Polypropylene film capacitors in series & low DF electrolytic caps in parallel. Tweeter thermal/current protection.
Inputs:   Custom 5-way bi-wire tool-less binding posts
Weight:   66 lbs.

Dimensions:   48" x 11.4" x 14.4 "


Motion 40i
$1199.99 each



The secret to Motion 40i's outstanding performance lies in its Folded Motion® tweeter, 5.5-inch aluminum cone midrange driver, dual 6.5-inch aluminum cone woofers with a rear-firing bass port, and a proprietary Vojtko crossover network. This double woofer design produces vibrant, accurate deep bass performance. Motion 40i delivers the classic broad soundstage of the Motion Series from a newly designed enclosure enhanced by the slightest of modifications, including the drive-stabilizing dust cap design, stiffened motor suspension, and low-mounted woofers to reduce an acoustically harmful phenomenon known as floor bounce. The speaker's enclosure sports a reinforced baffle and a fabric grille. Available in gloss black, matte white, and red walnut.

Specs:

Frequency Response      40–25,000 Hz ±3dB
Recommended Amplifier Power 20—300 watts per channel
Horizontal Dispersion    80°
Vertical Dispersion          80°
Sensitivity           92 dB/2.83 volts/meter
Impedance         4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency      500 & 2,600 Hz
High Frequency Transducer         1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm
Mid Frequency Transducer  5.5" (14cm) aluminum cone in a non-resonant asymmetrical chamber format. Cast polymer basket. Rigid structured dustcap reduces cone break-up.
Low Frequency Transducer  Two 6.5" (16.5cm) aluminum cone woofers in a non-resonant asymmetrical chamber format. Cast polymer basket. Rigid structured dust caps reduce cone break-up.
Components  Precision Vojtko™ w/custom air core coil & low DCR steel laminate inductors. Polyester film capacitors in series & low DF electrolytic capacitors in parallel
Inputs   Custom 5-way bi-wire tool-less binding posts
Weight 49 lbs.
Dimensions        42.5" x 7.6" x 12.8 "




Motion 20i
$899.99 each


The Motion 20i is a compact floorstanding loudspeaker with performance that is anything but small. The Motion 20i features a Folded Motion® tweeter, dual 5.5-inch aluminum cone woofers with a rear-firing bass port, and a proprietary Vojtko crossover network. Motion 20i delivers the classic broad soundstage of the Motion Series from a newly designed enclosure enhanced by the slightest of modifications, including the drive-stabilizing dust cap design, stiffened motor suspension, and low-mounted woofers to reduce an acoustically harmful phenomenon known as floor bounce. The speaker’s enclosure sports a reinforced baffle and a fabric grille. Available in gloss black, matte white, and red walnut.

Specs:
Frequency Response:    46–25,000 Hz ±3dB
Recommended Amplifier Power:   20—200 watts per channel
Horizontal Dispersion:   80°
Vertical Dispersion:   80°
Sensitivity:   90 db/2.83 volts/meter
Impedance: 4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency:   500 & 2,600 Hz
High Frequency Transducer:  1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm
Low Frequency Transducer:   Two 5.5" (14cm) aluminum cone woofers in a non-resonant asymmetrical chamber format. Cast polymer basket. Rigid structured dust caps reduce cone break-up.
Components:   Precision Vojtko™ with custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel
Inputs:   Custom 5-way bi-wire tool-less binding posts
Weight:   37 lbs.
Dimensions:   36.6" x 6.8" x 11.7 "


Motion 15i
$424.99 each



The Motion 15i bookshelf speaker features a Folded Motion® tweeter, a 5.25-inch aluminum cone woofer with a rear-firing bass port, and a proprietary Vojtko crossover network to deliver refined sound with very good dynamic range and excellent clarity. Motion 15i delivers the classic broad soundstage of the Motion Series from a newly designed enclosure enhanced by the slightest of modifications, including the drive-stabilizing dust cap design and stiffened motor suspension. The speaker’s cabinet sports a reinforced baffle and a fabric grille. Available in three stylish finishes: gloss black, matte white, and red walnut.

Specs:
Frequency Response   60–25,000 Hz ±3dB
Recommended Amp Power 20—200 watts per channel
Horizontal Dispersion 80°
Vertical Dispersion 80°
Sensitivity 92 dB/2.83 volts/meter
Impedance 5 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency 2,700 Hz
High Frequency driver   1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm
Low Frequency driver 5.25” (13.3cm) aluminum cone with cast basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes.
Components Custom air core coil and low DCR steel laminate inductors. Polypropylene film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection.
Inputs Custom 5-way tool-less binding posts
Weight 12 lbs.
Dimensions 11.4" x 6.8" x 9.5 "

Motion4i
$249.99 each

Audiophile performance without an audiophile price. Inspired by the clarity and detail of MartinLogan's ultra-high-end electrostatic loudspeakers, Motion 4i features a Folded Motion tweeter, 4-inch paper cone woofer, and a proprietary Vojtko crossover network in a compact and affordable package. Low-frequencies are enhanced by a rear-firing Cascading Bass Reflex Port, a unique, long-volume port that delivers surprisingly big bass from a remarkably compact loudspeaker. Flexible installation options allow table top or on-wall installation. Motion 4i can also mount upside down to facilitate placement high on a wall. Available in gloss black.

Specs:
Frequency Response 70–23,000 Hz ±3dB
Recommended Amp Power 20—150 watts per channel
Horizontal Dispersion 80°
Vertical Dispersion 80°
Sensitivity 90 dB/2.83 volts/meter
Impedance 4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency 2,900 Hz
High Frequency Transducer 1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm
Low Frequency Transducer 4" (10.2cm) paper cone with stamped steel basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes. Folded bass reflex port.
Components Custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection.
Inputs Push style with banana jacks
Weight 6 lbs. (2.72 kg)
Dimensions 12.6" x 5.6" x 5.7 "

Subwoofers
Powerful. Compact. Precise. MartinLogan Dynamo subwoofers offer audiophile grade performance, home-friendly aesthetics, and a bevy of wireless features including app based controls, app based Anthem Room Correction, and optional wireless audio connections.

MARTINLOGAN SUB CONTROL APP
(AVAILABLE FOR iOS AND ANDROID)

MartinLogan’s Subwoofer Control app uses a Bluetooth connection to simplify setup and configuration of Dynamo 600X, 800X, 1100X, and 1600X. App based controls include volume level, low-pass filter (frequency and order), phase, 20–30Hz level, three preset listening modes, and control of Anthem Room Correction. A unique tone sweep feature assists users in locating areas in listening rooms where troublesome rattles or resonances may occur. A single press of a button allows listeners to initiate a tone sweep from 20–120Hz. If a rattle or resonance occurs in the room any frequency can be held, allowing the listener to investigate and identify the source of the unwanted noise.

Dynamo 800X
$849.99



A great sub at a reasonable cost. The 10" long throw driver combined with the 600 watt amp in a sealed box means tight clean bass for quality audio and when combined with the Anthem room correction you get a flat extended bass down to 24Hz.

The Future of Audio: Integrated Systems?

"In the end, bass on this system was deep, controlled, and less distracting than on many systems. I had a greater sense than is usual that bass was just part of the music, not something generated by an audio system." —Tom Martin, The Absolute Sound

Read the full review here:
http://www.theabsolutesound.com/articles/the-future-of-audio-integrated-systems/


  • 10-inch inverted surround poly cone woofer
  • 600 Watts (peak) amplifier
  • Sealed non-resonant cabinet
  • Digital control system via smartphone app
  • Anthem Room Correction (ARC®) via smartphone app or PC
  • Robust connection options, including RCA and speaker level inputs; 12V Trigger
  • Configurable front or down-firing design
  • SWT-X Wireless Receiver & Transmitter (sold separately)
Specs:
Frequency Response:  24–200 Hz ±3 dB. Anechoic in LFE mode.

Low Frequency Transducer:  10” (25.4cm) high-excursion, inverted surround, polypropylene cone in a stamped steel basket with extended throw driver assembly; sealed non- resonant cabinet design.
Amplifier: 300 Watts (600 watts peak)
Software:  Sub Control App: iOS and Android
Anthem Room Correction: iOS, Android, and PC
Room Correction:  Anthem Room Correction (ARC)
Controls (Backplate):  Level: Min–Max / Setting Control: Local, App / Power Mode: On, Trigger, Auto
Controls (via Bluetooth)
Level: -40 to 12dB
Low-Pass Filter (Frequency): 35–120Hz
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Music, Night, Movie
20–30Hz Level: ±10dB
Anthem Room Correction (ARC): On, Off
Tone Sweep (20–120Hz): On, Off, Pause (Frequency)
Inputs (Audio):  Line Level: Left, Right, and LFE  /  Speaker Level: Left and Right via banana jacks
Inputs (Audio, Wireless):  SWT-X Receiver & Transmitter (sold separately)
Weight:  30 lbs. (13.6 kg)
Dimensions (HxWxD), Front-Firing: 14.6" x 12.4" x 12.7"
Dimensions (HxWxD), Down-Firing:  13.7" x 12.4 " x 13.1 "
Finish: Satin Black


Dynamo 1100X
$1,299.99
Front or down firing

A serious 12" subwoofer to make killer bass with control from your phone & Room correction.

The Dynamo 1100X features a 1,300 Watt (peak) amplifier, 12-inch audiophile grade woofer, extensive input options, optional wireless connectivity, control via a Bluetooth app, Anthem Room Correction (ARC®), and user-configurable front- or down-firing design. Dramatic bass detail and attack, superb extension, and room-shaking output ensure a compelling music and home theater experience.

MartinLogan Dynamo 1100X Subwoofer Reviewed

"The 1100X seriously impressed me for the price, offering exceptional build quality, seamless sound quality, impressive bass extension, and feature-rich software control."

—Dylan Seeger, HomeTheaterReview.com
Read the full review: https://hometheaterreview.com/martinlogan-dynamo-1100x-subwoofer-reviewed/

"...the many options on the app allow a degree of setup perfection that is unmatched in the industry."
—Matthew Poes, AV Nirvana

  • 12-inch inverted surround poly cone woofer
  • 1,300 Watts (peak) amplifier
  • Sealed non-resonant cabinet
  • Digital control system via smartphone app
  • Anthem Room Correction (ARC®) via smartphone app or PC
  • Robust connection options, including XLR, RCA, and speaker level inputs; 12V Trigger
  • Configurable front or down-firing design
  • SWT-X Wireless Receiver & Transmitter (sold separately)
Specs:
Frequency Response:  22–200 Hz ±3 dB. Anechoic in LFE mode.

Low Frequency Transducer:  12” (25.4cm) high-excursion, inverted surround, polypropylene cone in a stamped steel basket with extended throw driver assembly; sealed non- resonant cabinet design.
Amplifier: 650 Watts (1300 watts peak)
Software:  Sub Control App: iOS and Android
Anthem Room Correction: iOS, Android, and PC
Room Correction:  Anthem Room Correction (ARC)
Controls (Backplate):  Level: Min–Max / Setting Control: Local, App / Power Mode: On, Trigger, Auto
Controls (via Bluetooth)
Level: -40 to 12dB
Low-Pass Filter (Frequency): 35–120Hz
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Music, Night, Movie
20–30Hz Level: ±10dB
Anthem Room Correction (ARC): On, Off
Tone Sweep (20–120Hz): On, Off, Pause (Frequency)
Inputs (Audio):  Line Level: Left, Right, and LFE  /  Speaker Level: Left and Right via banana jacks
Inputs (Audio, Wireless):  SWT-X Receiver & Transmitter (sold separately)
Weight:  46 lbs.
Dimensions (HxWxD), Front-Firing: 10.2" x 15" x 16.2"
Dimensions (HxWxD), Down-Firing:  17.1" x 15 " x 15.5"
Finish: Satin Black



Dynamo 1600X
$1,999.99


Front or down firing

The 1600X is the biggest bad boy in the Dynamo line. This 15" sealed woofer driven by an 1800 watt amp will move your room in a home thester or add a real foundation to your high end audio system. And Anthem room correction means the bass is tight and clean with no more room nodes that plague every system.

Dynamo 1600X features an 1,800 Watt (peak) amplifier, 15-inch audiophile grade woofer in a sealed box, real 20Hz bass, extensive input options, optional wireless connectivity, control via a Bluetooth app, Anthem Room Correction (ARC®), and user-configurable front- or down-firing design. Dramatic bass detail and attack, superb extension, and room-shaking output ensure a compelling music or home theater experience.

Dynamo 1600X
Product Highlights

  • 15-inch inverted surround poly cone woofer
  • 1,800 Watts (peak) amplifier
  • Sealed non-resonant cabinet
  • Digital control system via smartphone app
  • Anthem Room Correction (ARC®) via smartphone app or PC
  • Robust connection options, including XLR, RCA, and speaker level inputs; 12V Trigger
  • Configurable front or down-firing design
  • SWT-X Wireless Receiver & Transmitter (sold separately)


MartinLogan Dynamo 1600X Powered Subwoofer Review

"The response I heard in the low bass was fuller than I was expecting and right up there with subwoofers that cost many times more than the Dynamo 1600X. This sub could produce these high levels over sustained periods and never even break a sweat. I mean there really were times I thought the bass would break something in the room but it just kept on keeping on."
Jim Clements, Secrets of Home Theater and High Fidelity

Read the entire review here:
https://hometheaterhifi.com/reviews/speaker/subwoofers/martinlogan-dynamo-1600x-powered-subwoofer-review/

Specs:
Frequency Response 20–200 Hz ±3 dB. Anechoic in LFE mode.
Impedance RCA: 8,300 Ohms
Speaker Level: 2,000 Ohms (red to black)
XLR: 28,000 Ohms (pin 2 to 3)
Low Frequency Transducer 15” (38.1cm) high-excursion, inverted surround, polypropylene cone in a cast aluminum basket with extended throw driver assembly; sealed non- resonant cabinet design.
Amplifier 900 Watts (1,800 peak)
Software Sub Control App: iOS and Android

Anthem Room Correction: iOS, Android, and PC
Room Correction Anthem Room Correction (ARC)
Controls (Backplate) Level: Min–Max
Setting Control: Local, App
Power Mode: On, Trigger, Auto
Controls (via Bluetooth) Level: -40 to 12dB
Low-Pass Filter (Frequency): 35–120Hz
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Music, Night, Movie
20–30Hz Level: ±10dB
Anthem Room Correction (ARC): On, Off
Tone Sweep (20–120Hz): On, Off, Pause (Frequency)
Inputs (Audio) Line Level: Left, Right, and LFE
Speaker Level: Left and Right via banana jacks
XLR: LFE
Inputs (Audio, Wireless) SWT-X Receiver & Transmitter (sold separately)
Inputs (Other) USB: Micro USB (for ARC/Firmware Update)
Trigger: 3.5mm, 5–24 DC

Feet Rubber, ETC (Energy Transfer Coupler) Spikes
Weight 57 lbs.
Dimensions (HxWxD), Front-Firing 20.1" x 17.9" x 19.1"
Dimensions (HxWxD), Down-Firing      20" x 17.9 " x 18.5 "
Finish Satin Black
