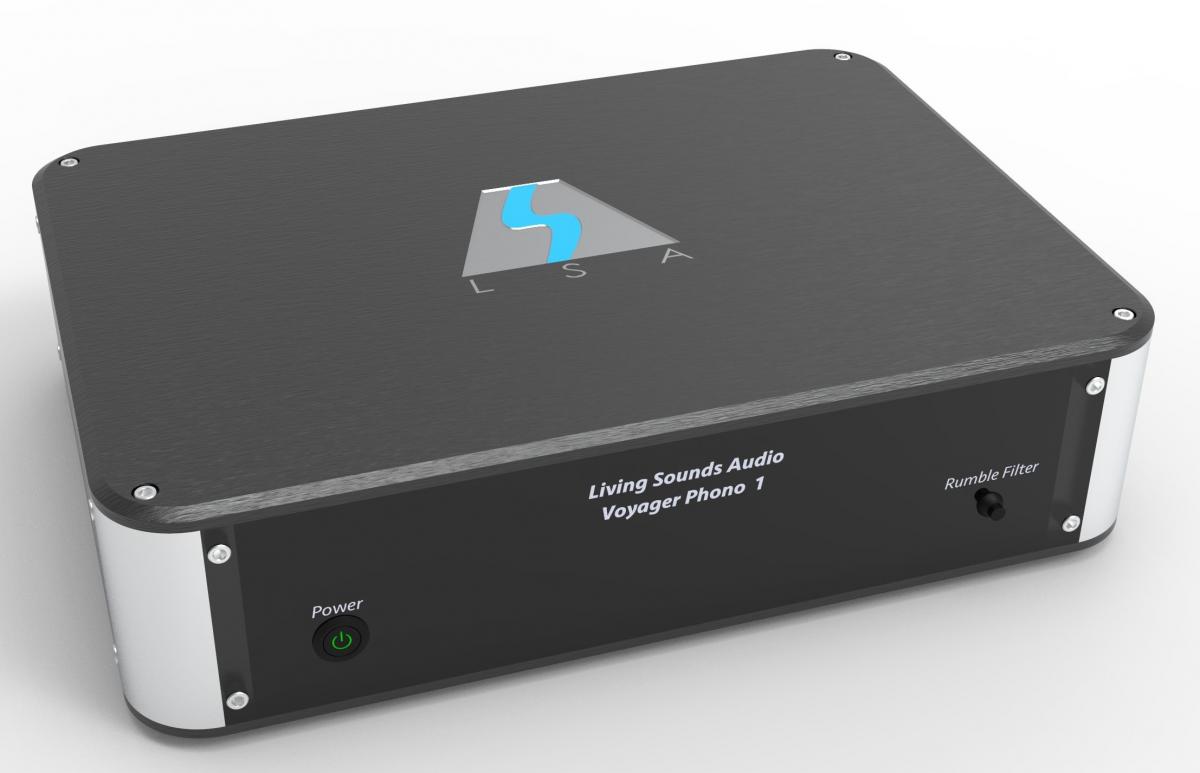

Voyager Phono One
Projected retail is $1495.00
Our new LSA 2 box phono stage, the Voyager Phono One, was designed by our new design team and is expected to ship by late October.
The two box Phono One is a moving magnet/moving coil phono stage with rear mounted dip switches for gain, capacitance and impedance. It has a front mounted rumble filter for warped records. It is extremely quiet with excellent dynamics and great transparency. We expect it to set the standard for price vs performance in a reasonably priced phono stage.
Features Include:
Discrete differential JFET input
Multiple parallel JFETs for lower noise figures
Split Passive/Active RIAA Equalization
Ultra-low noise precision voltage regulators for each channel
Core Power Technologies balanced AC power supply featuring two toroidal transformers
Our $400.00 balanced power transformer is built in to deliver super clean balanced power to the main transformer
Sensitive circuitry enclosed in steel enclosure for lowest hum pickup
Incredible Performance at an incredibly special price. Real Alchemy – Real Value
More info to follow
Projected retail is $1495.00
Our new LSA 2 box phono stage, the Voyager Phono One, was designed by our new design team and is expected to ship by late October.
The two box Phono One is a moving magnet/moving coil phono stage with rear mounted dip switches for gain, capacitance and impedance. It has a front mounted rumble filter for warped records. It is extremely quiet with excellent dynamics and great transparency. We expect it to set the standard for price vs performance in a reasonably priced phono stage.
Features Include:
Discrete differential JFET input
Multiple parallel JFETs for lower noise figures
Split Passive/Active RIAA Equalization
Ultra-low noise precision voltage regulators for each channel
Core Power Technologies balanced AC power supply featuring two toroidal transformers
Our $400.00 balanced power transformer is built in to deliver super clean balanced power to the main transformer
Sensitive circuitry enclosed in steel enclosure for lowest hum pickup
Incredible Performance at an incredibly special price. Real Alchemy – Real Value
| Selectable Gains (dB) | 40/43/60/63 |
| Gain matching between Left & Right Ch. | within 0.2dB |
| Selectable Input Impedance (ohms) | 10/100/1k/47k |
| Selectable Input Capacitance (pF) | 100/220 |
| Measured RIAA Accuracy (50Hz to 10kHz) | +/-0.1dB |
| Switchable Subsonic Rumble Filter | -18dB/octave, -6dB at 20Hz |
| Switchable Supersonic | -12dB/octave, -3dB at 50kHz |
| Measured THD+N A-weighted @ 40dB Gain | -82dB |
| Noise Floor at 1khz relative to 12dBU (3.08Vrms) full scale output | |
| 40dB Gain & 47 kohms input impedance | -119dB |
| 63dB Gain & 10 ohms input impedance | -101dB |
| 63dB Gain & 47 kohms input impedance | -99dB |
| Power Requirements (Auto-Switching) | 100 to 227VAC, 50/60Hz, 3W |
More info to follow
